Gear Hob Cutters
GEAR HOB CUTTERS

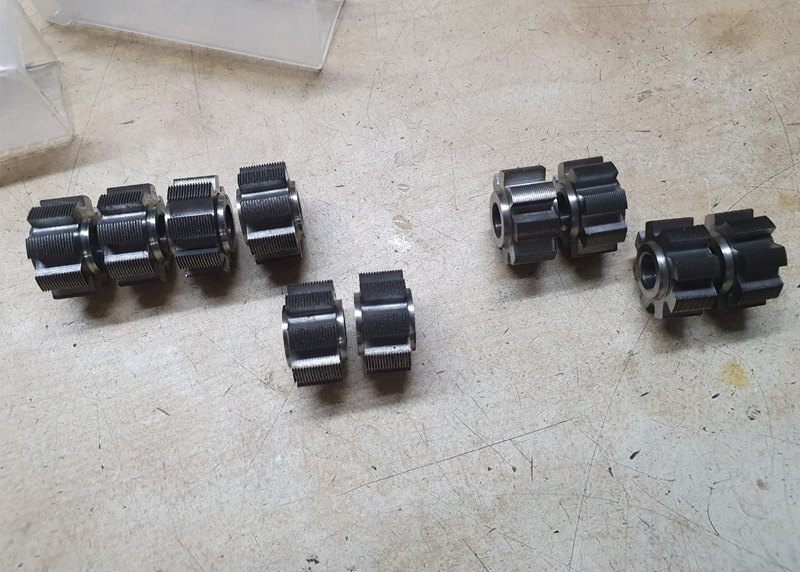

Yash Tools Produces wide range of Gear Hobbing cuttersto cutall types of Spur, Straight, Helical, Involute, Timing Pulley, Sprocket Gears, Spline cutting, Bevel Generation& worm gears. Gear Hobbing is the most commonly used methods Worldwide to cut Industrial and Automobiles gears which are done via Gear Hobbing machines.

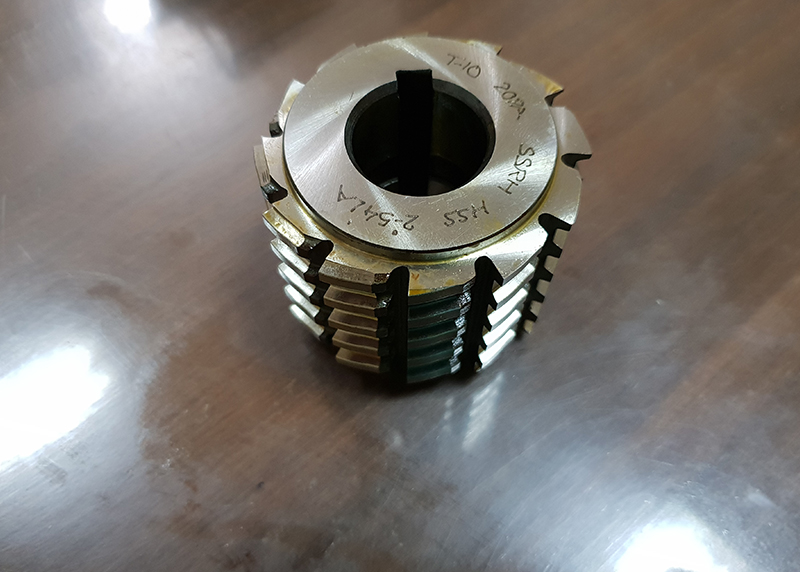

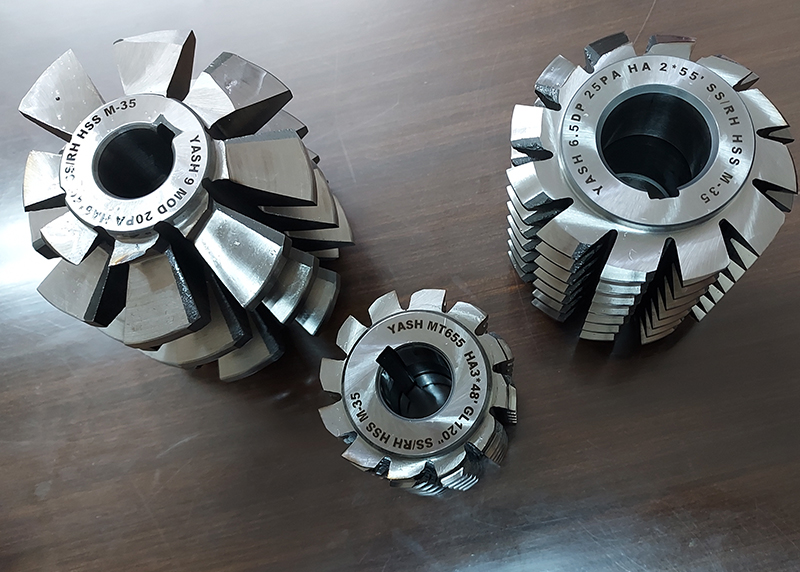

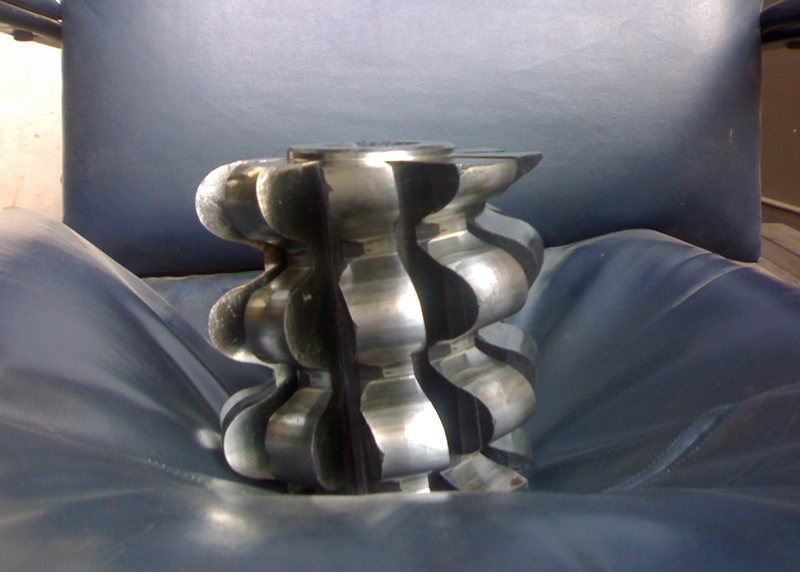

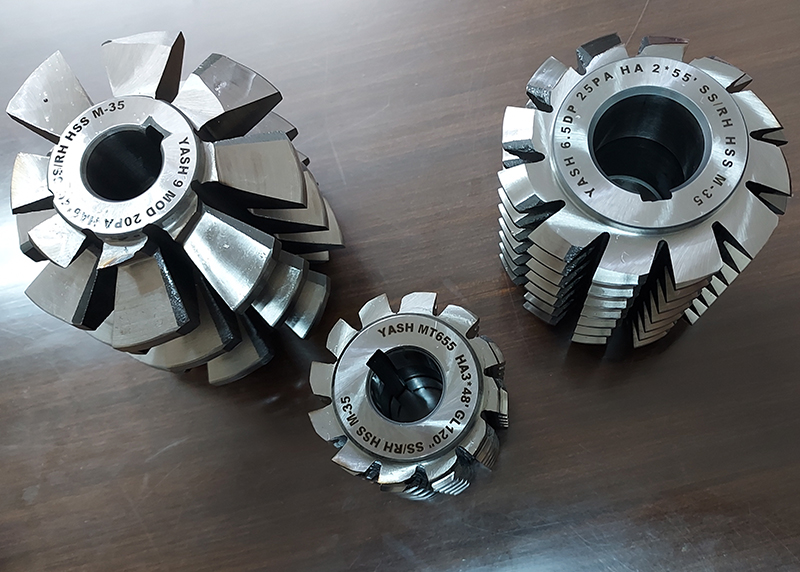

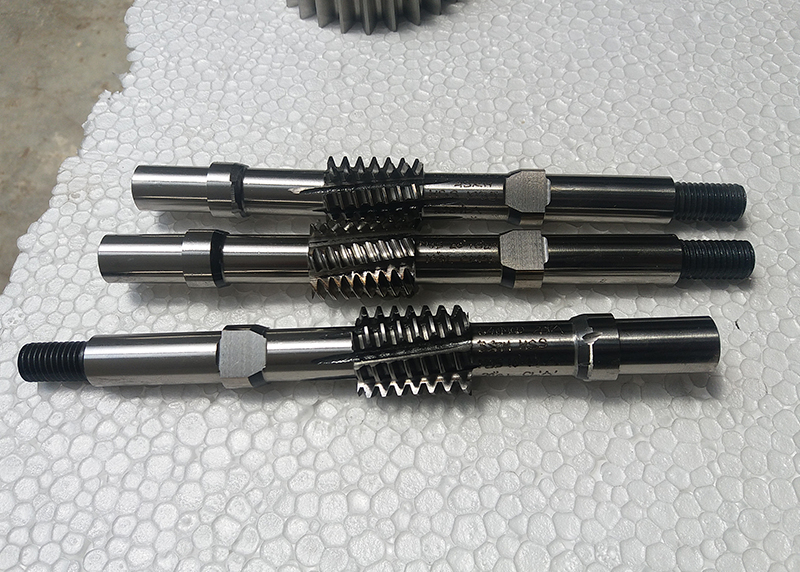

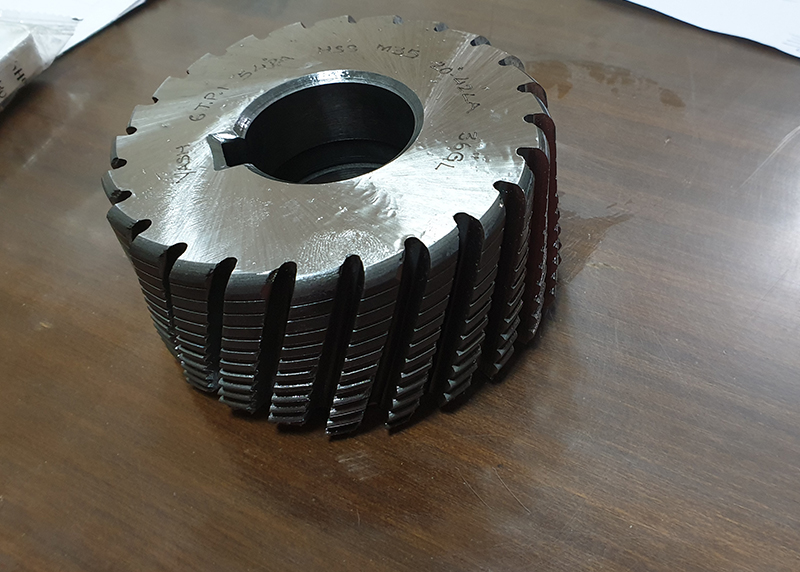

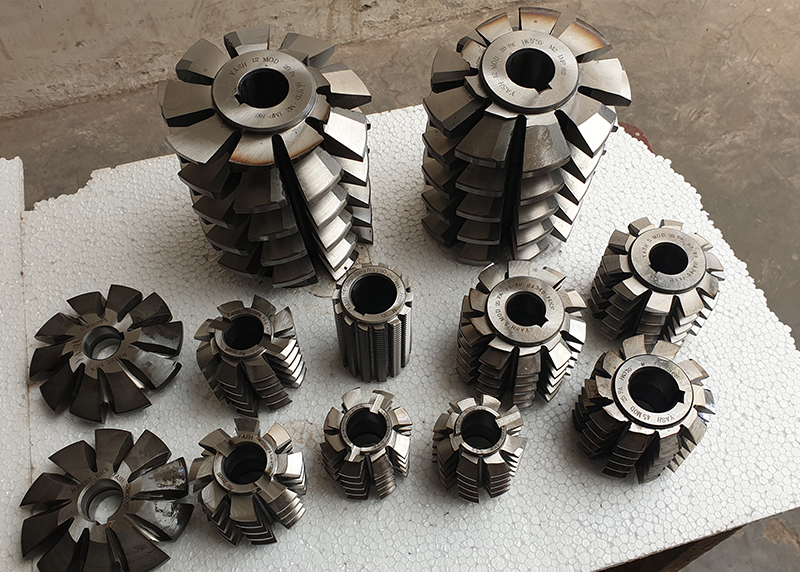

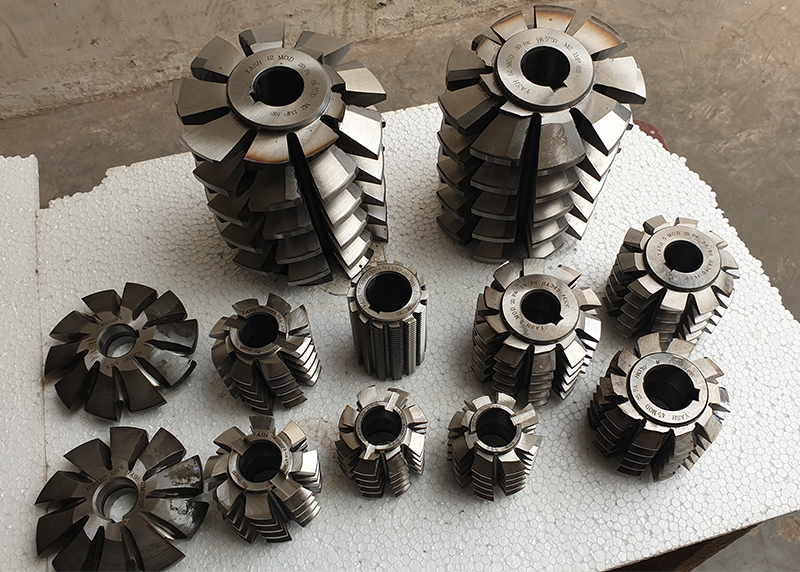

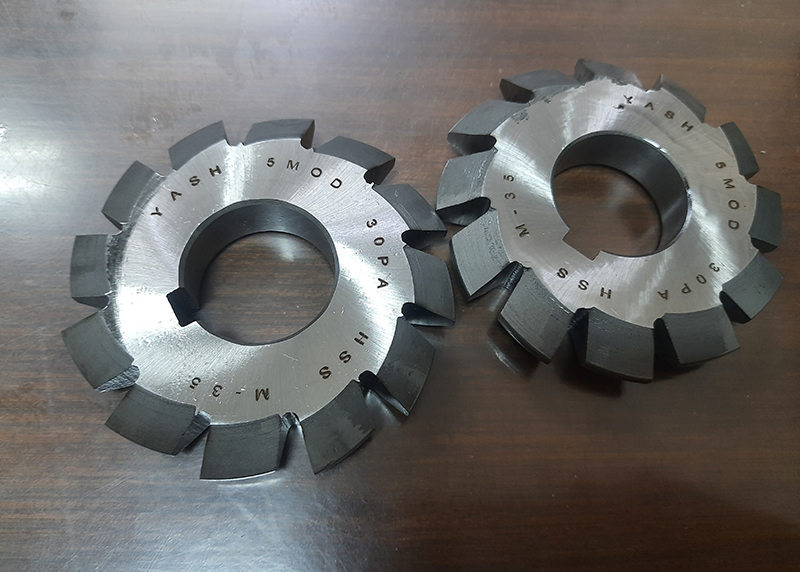

We have been exporting all type of gear Hobbing cutters worldwide since last 17 years. Our manufactured cutters are very high precision & high accuracy cuttersupto Class AAA, AA, A as Per DIN 3968. We design Gear hobs according to the Component or gear data offered by client, standard or non-standard pitches. There are different types of Gear hobs which are tailor made as per different profile &types of gears to cut such as Involute Gear Hobs, Spline Gear Hobs, Straight Spur Gear Hobs, Worm Gear Hobs, Chain Sprocket Gear Hobs, Timing pulley chain Gear Hobs, Serration hobs, etc.
We use High Grain extensive & QualityHigh Speed Steel& powder Metallurgy Steeldirectly from All over world Steel mills to manufacture our supplied different types of Gear hobs.
Specifications of Gear Hobbing cutters / Basic Parameters –
Gear Pitch Range –
- 0.20Module to 45 Module
- 96 DP to 0.5 Diametric Pitch
Profile Forms:
- Non-Topping, With Topping, Semi-Topping, With Protuberance, Pre-shaving, Pre-grinding, Chamfer, full fillet etc.
Rotation of Gear hob:
- Right or Left Hand
Start:

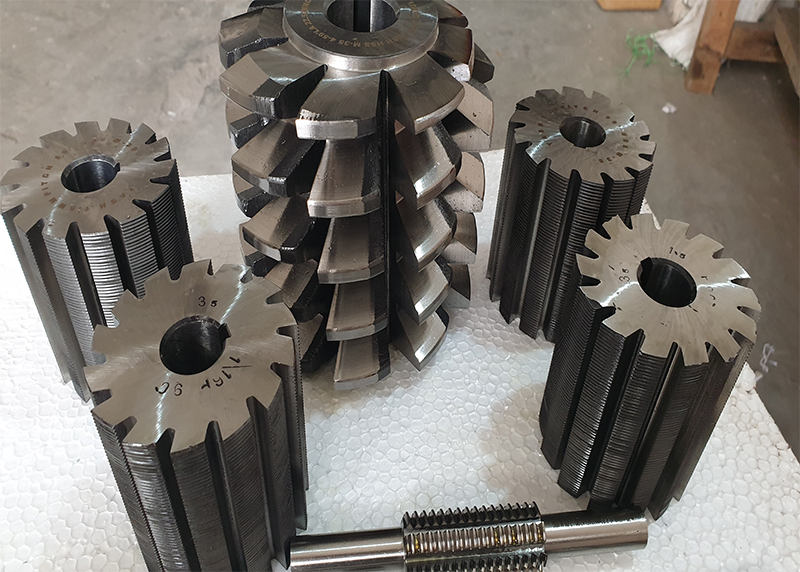

- Single, 2 start or Multi Start (Upto 10 start)
Accuracy:
- AA, A, B Ground Finishing (as per DIN 3968 or equivalent AGMA, IS standard) &Machine Relieved “C” with all standard & non-standard profiles
PVD SURFACE COATING:

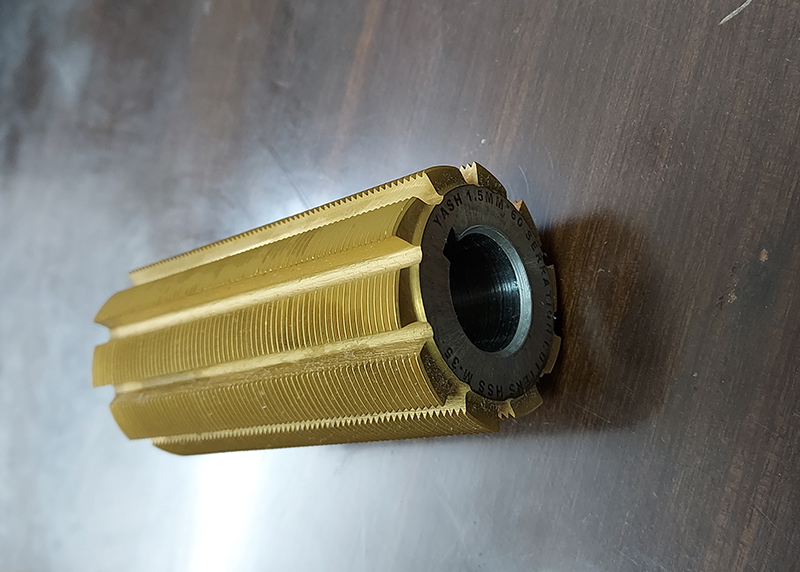

- 2-4 microns (OPTIONAL) Available in TiN, TiCN, ALTIN, ALCRONA Coatings
Material:
- HSS M-2, M35, PM ASP 30, ASP 52 or any special Required material
Related Products
Quality - Complete Customer Satisfaction (CCS)
At Yash International, we believe in 3-sigma quality process
- 1 Maintaining World-class quality products & ensuring deliveries on-time
- 2 Providing most cost-effective pricing to our clients
- 3 Always ensuring complete customer satisfaction (CCS)
You will see technology at its best, be it in the components, the advanced production line or the well trained work force. We adhere to the exacting AGMA, DIN, BS, and JIS industry standards to maintain accuracies and preserve precise tolerances To maintain the best quality of the products we have adopted system of mandatory inspection and tests as well as periodic quality audits and system evaluations.
Certifications
We are a ISO 9001:2015 Certified company driven by Professional excellence, Technical competence and Total Quality Management system
MSME REGISTRATION (GOVT OF INDIA) CERTIFICATION\
REGISTERED MEMBER OF FEDERATION OF INDIAN EXPORTS ORGANIZATION (FIEO)
We, Commit ourselves for supplying products that would give complete satisfaction to customer. We will strive to achieve growth and leading position in the market by; supplying consistent quality products to our valued customers.
