Worm Wheel Gear Hob Cutters

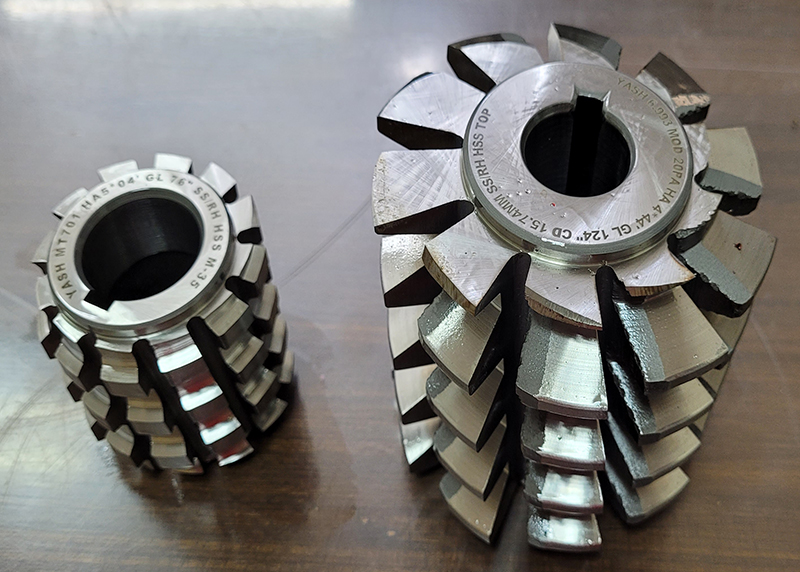

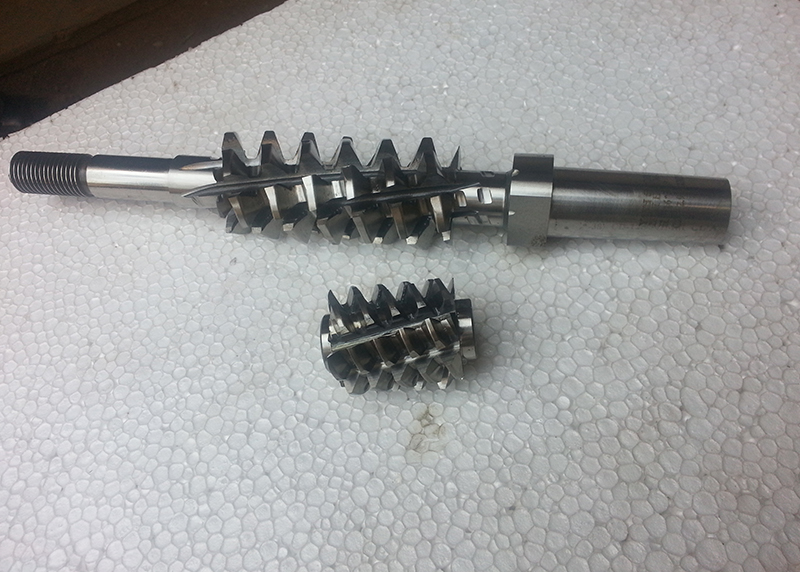

We supply Worm Gear Hob cutters to cut internal as well as external teeth Of WORM SHAFT / WORM GEAR.

Bore typeInvolute Worm gear Hob cutters are supplied to cut external teeth worm gears generally, Hob Threads are designed to cut worm gear tooth profile externally.

Worm wheel Hobs are specifically made &designed for plunge cutting. These hobs are a part of specific tools that match the worm shaft with sharpening allowance. Worm hobs are manufactured in Single, 2 start & multi start ground form

Yash Tools Produces wide range of Gear Hobbing cutters to cutall types of Spur, Straight, Helical, Involute Gear Profiles, Internal & External Worm gears. Our Hobbing cutters are very high precision & high accuracy cutters upto Class AA, A as Per DIN 3968. We design Gear hobs according to the Component or gear data offered by client, standard or non-standard pitches

As per client component speed and feed rate to its hobbing machines, we do advise and recommend them different types of HSS raw material & surface PVD coatings 2-4 microns to have a smooth and better life of cutters.

Specifications of Involute Gear Hob Cutters / Basic Parameters –

Gear Pitch Range –
  • 0.20Module to 45 Module
  • 96 DP to 0.5 Diametric Pitch
Profile Forms:
  • Non-Topping, With Topping, Semi-Topping, With Protuberance, Pre-shaving, Pre-grinding, Chamfer, full fillet etc.
Rotation of Gear hob:
  • Right or Left Hand
Start:
  • Single, 2 start or Multi Start (Upto 10 start)
Accuracy:
  • AA, A, B Ground Finishing (as per DIN 3968 or equivalent AGMA, IS standard) &Machine Relieved “C” with all standard & non-standard profiles
PVD SURFACE COATING:
  • 2-4 microns (OPTIONAL) Available in TiN, TiCN, ALTIN, ALCRONA Coatings
Material:
  • HSS M-2, M35, PM ASP 30, ASP 52 or any special Required material
