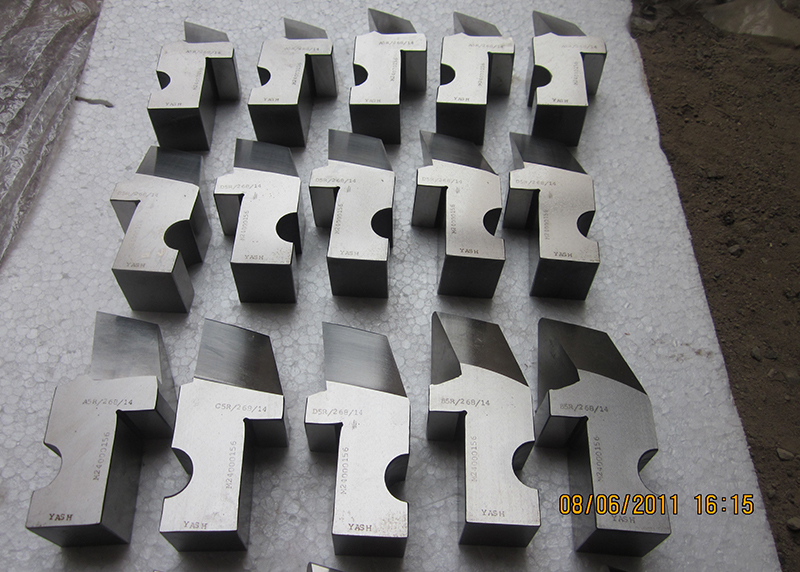

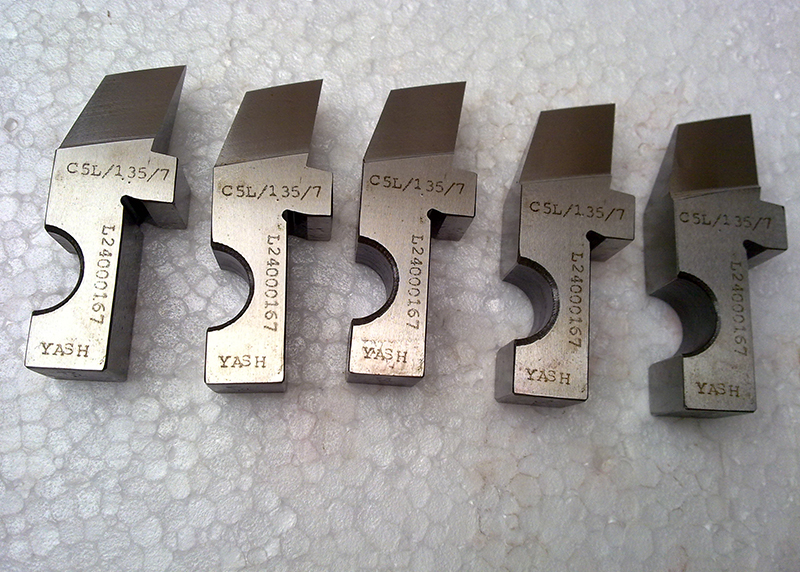

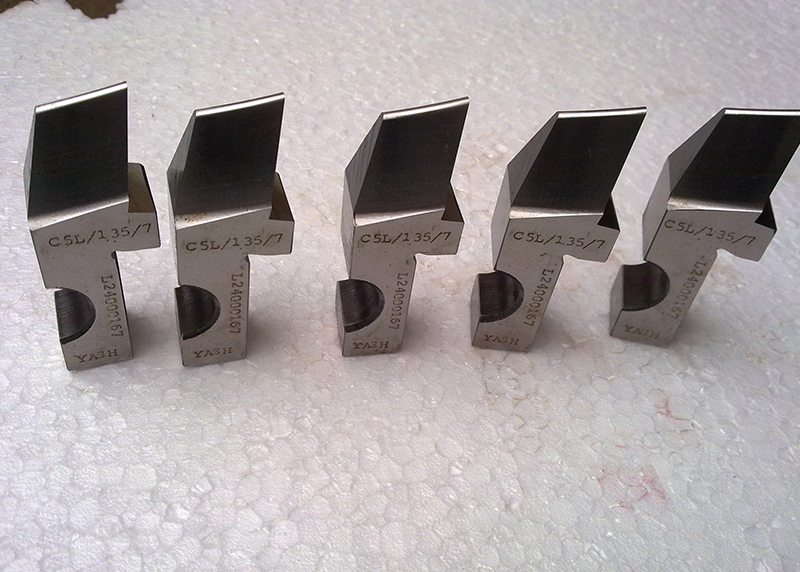

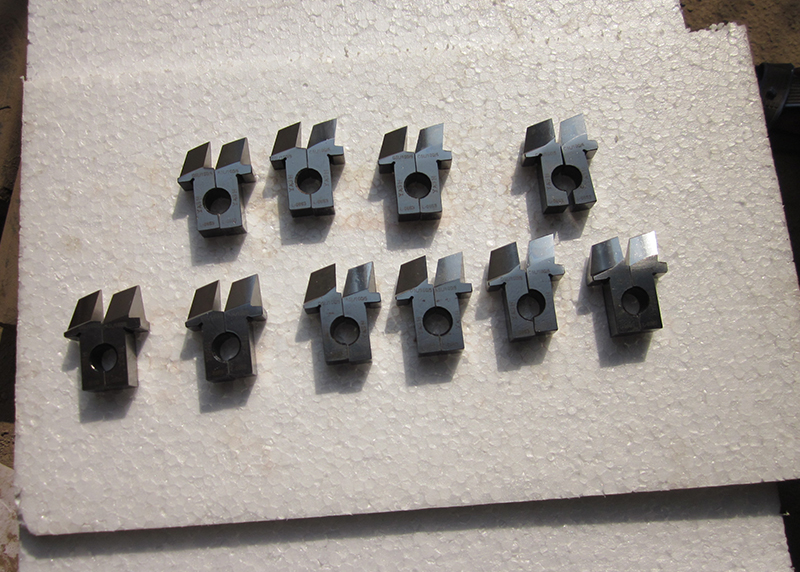

Klingelnberg type AMK Cutting blades
Klingelnberg type AMK Cutting blades: 5L/5R (A+B+C+D)
Universal Cutting inserted blades for Spiral Bevel Gear MachineKlingelnberg Type AMK 250, AMK 400, AMK 630, AMK 635, AMK 855, KNC40 & FK41B Machines for cutting pinion and gear as well as Hypoid gears
- Universal Blades made from tool steel for Gear Cutting in Soft stage and CBN-equipped HPG-S clamping blades for machining after case hardening.
- Standardized High Precision Profile Relief Blades made from High-speed steel
- Spiral Direction- Independent Blade sets
- Blade changes are operationally easily feasible without being the cutter heads to be disassembled
- Control measurement of the blade position is not required after blade installation
We are SPECIALIST in producing Klingelnberg 5 series blade sets and supporting Many OEM for the supply of these blades.
Rotation of Blade (Right hand Rotation) Clockwise Blades type
Rotation of Blade (Left hand Rotation) Anti-Clockwise Blades type
Specifications of Klingelnberg type AMK Cutting blades / Basic Parameters –
| Specification Types | Module |
|---|---|

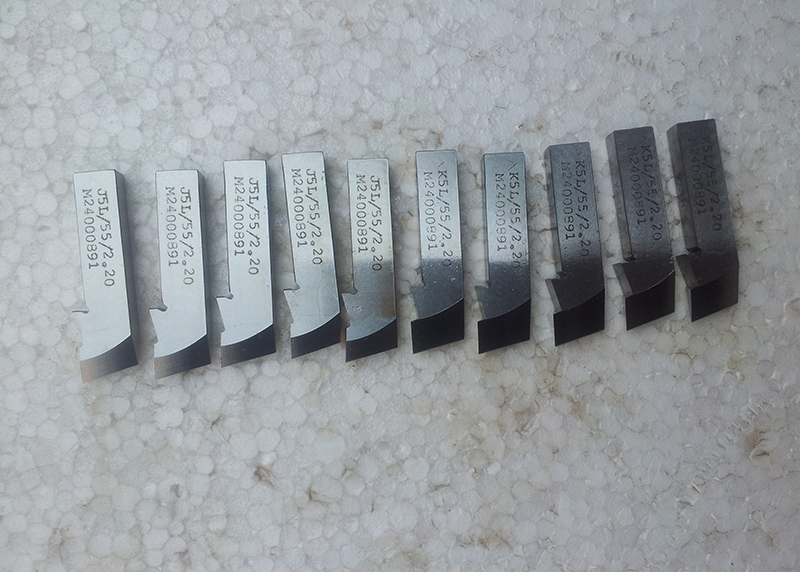

| 5R/5L - 55 (J+K = 10 Blades) | 1.20, 1.80, 2.20, 2.60 |
| 5R/5L - 75 (A+B+C+D = 20 Blades) | 2.60, 3.20, 4.0 |
| 5R/5L - 100 (A+B+C+D = 20 Blades) | 4,5,6 |
| 5R/5L - 135 (A+B+C+D = 20 Blades) | 4，5，6，7 |
| 5R/5L - 170 (A+B+C+D = 20 Blades) | 5,6,7,8,10,12 |
| 5R/5L - 210 (A+B+C+D = 20 Blades) | 8,10,12 |
| 5R/5L - 218 (A+B+C+D = 20 Blades) | 10, 12 |
| 5R/5L - 260 (A+B+C+D = 20 Blades) | 10,12 |
| 5R/5L - 268 (A+B+C+D = 20 Blades) | 14 |
Materials :
- Coating: TIN, ALTIN, ALCRONA PRO (as per request)

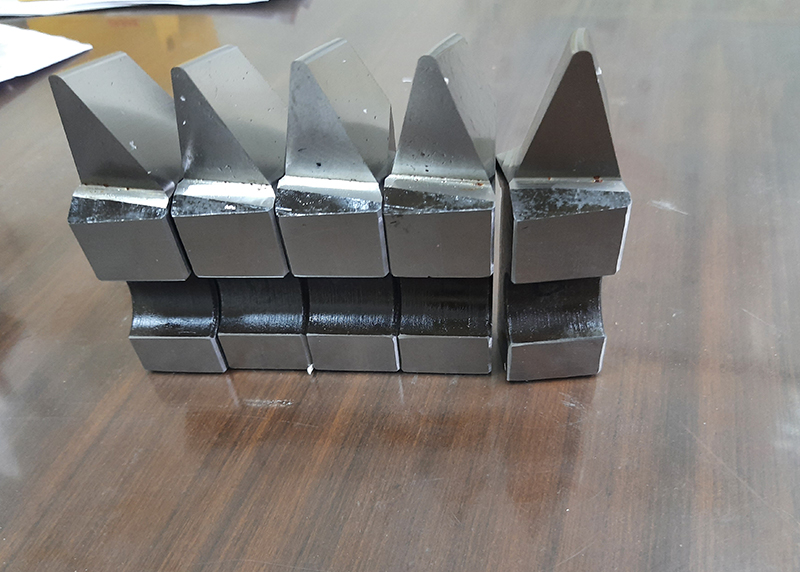

KLINGELNBERG CARBIDE DRY CUTTING BLADES
- We supply Klingelnberg dry cutting Blades (Carbide &HSS)& Accessories for Klingelnberg spiral bevel gear generators for Automobile OEM major users of manufacturing Bevel Gear & Pinions.
- Major Supplier of Dry Cutting Carbide Blades for Gleason & Klingelnberg Machines
- Carbide profile grinding ensures meeting customers exacting needs
- Carbide material is sourced from the best sources. We engineer the block rough grinding profiles to ensure minimal grinding on your expensive grinding machines
- Pitch Line Spherical locators, Trays for Blades
Klingelnberg Dry cutting Carbide Blade 10% Co, Rectangular Blank Ground 15.24*10.16*105
Quality - Complete Customer Satisfaction (CCS)
At Yash International, we believe in 3-sigma quality process
- 1 Maintaining World-class quality products & ensuring deliveries on-time
- 2 Providing most cost-effective pricing to our clients
- 3 Always ensuring complete customer satisfaction (CCS)
You will see technology at its best, be it in the components, the advanced production line or the well trained work force. We adhere to the exacting AGMA, DIN, BS, and JIS industry standards to maintain accuracies and preserve precise tolerances To maintain the best quality of the products we have adopted system of mandatory inspection and tests as well as periodic quality audits and system evaluations.
