Internal Helical Gear Shaper Cutter

One
One
One
One
One
One

Internal Helical Gear Shaper Cutter

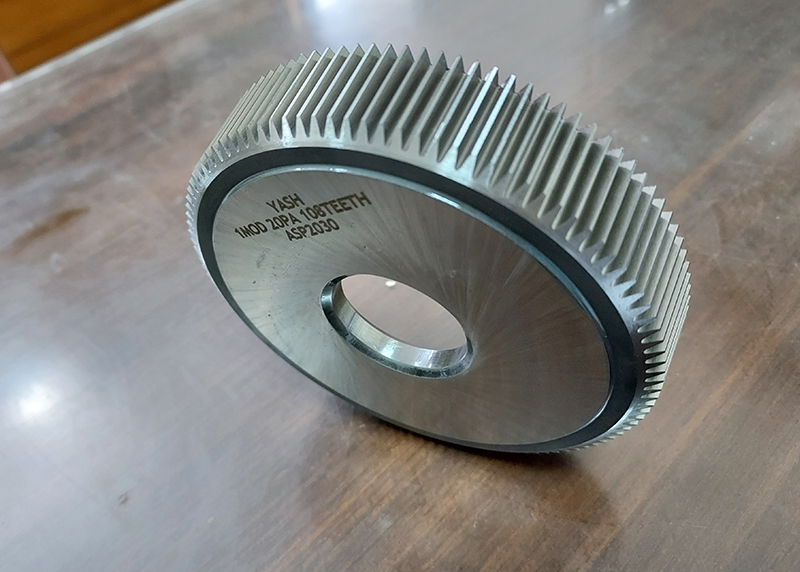

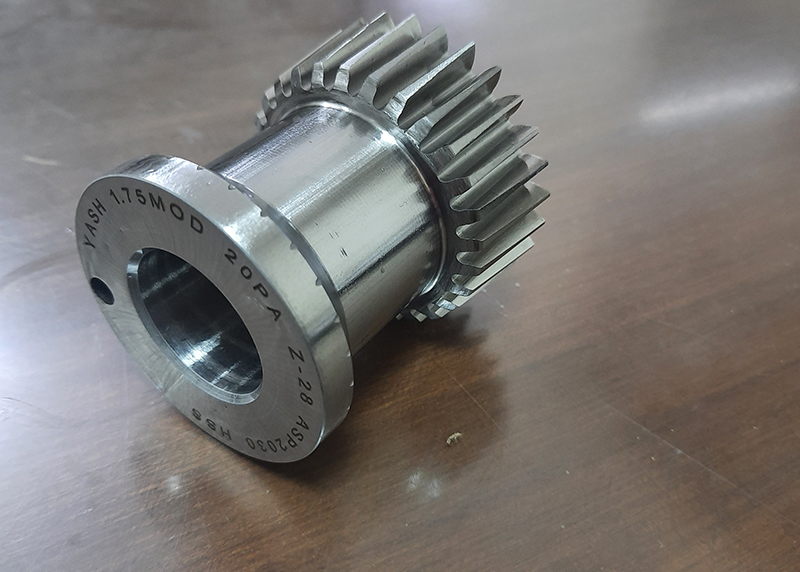

Helical gear shaper cutters are offered for doing precision engineering for helical gears. These cutters are designed with uphill side relief and downhill side relief. Features such as protubence and semi topping can also be designed according to component drawing. These shaper cutters have high precision to give fine finishing form as per DIN, ACME, IS standards.

We supply gear shaper cutters in Raw material HSS M35 or ASP30 which are most commonly used with respect to the hardness of gear (Rockwell / Brinell) to cut. Often times, there is huge number of gears of quantity which have to be cut by gear manufactures – we recommend them different types of raw material & surface PVD coatings 2-4 microns to have a smooth and better life of cutters

Specifications of Gear Shaper cutters –

Gear Pitch Range –
  • 0.20Module to 25 Module
  • 64 DP to 1.0 Diametric Pitch
Cutting Forms –
  • Splines, Spur gears, Helical gears, Chain sprockets pitch, Timing pulleys, Involute forms
Diameterof cutter–
  • 50mm dia to 300mm Dia , Bore size 22, 31.75, 44.45, 88.90 mm
Pressure Angle –
  • 14°30’, 20°, 25°, 30°
Accuracy:
  • Class “AA” & “A” as per DIN, BS, ASA standards specification
Special features:
  • Chamfering, semi-topping, protuberance, flat or fillet roots
Spur & Helical Gears
  • With all standard & non-standard profiles
SURFACE COATING
  • 2-4 microns (OPTIONAL) Available in TiN, TiCN, ALTIN, ALCRONA Coatings
Material:
  • HSS M-2, M35, PM ASP 30 or any special Required material

Quality - Complete Customer Satisfaction (CCS)

At Yash International, we believe in 3-sigma quality process
  • 1 Maintaining World-class quality products & ensuring deliveries on-time
  • 2 Providing most cost-effective pricing to our clients
  • 3 Always ensuring complete customer satisfaction (CCS)

You will see technology at its best, be it in the components, the advanced production line or the well trained work force. We adhere to the exacting AGMA, DIN, BS, and JIS industry standards to maintain accuracies and preserve precise tolerances To maintain the best quality of the products we have adopted system of mandatory inspection and tests as well as periodic quality audits and system evaluations.

Certifications

We are a ISO 9001:2015 Certified company driven by Professional excellence, Technical competence and Total Quality Management system

MSME REGISTRATION (GOVT OF INDIA) CERTIFICATION\

REGISTERED MEMBER OF FEDERATION OF INDIAN EXPORTS ORGANIZATION (FIEO)

We, Commit ourselves for supplying products that would give complete satisfaction to customer. We will strive to achieve growth and leading position in the market by; supplying consistent quality products to our valued customers.
